Convenient for maintain cement mortar pump drive by hydraulic engineer available
Introduction:
Convenient for maintaining cement mortar pump drive by hydraulic with double piston and single acting is widely used in construction for its convenient maintenance, compact structure ,high working pressure and high efficiency, working reliability,and Pump motor is hydraulic piston cement pump etc. Pump motor it can be used not only for grouting cement mortar and sand mortar, combined with accessories such as compressor and spraying gun, it is also ideal equipment applied in spraying. Pump motor is widely used for grouting in mine gallery, rail and road tunnel, hydropower construction, slope consolidation, underground engineering, subway and civil engineering etc, above all, Pump motor it is convenient for maintaining.
Features:
1. Double piston Pump motor pump single acting for construction.
2. Switch by ball valve,Hydraulic hydraulic Mortar cement pump.
3. Mechanical transmission, lower failure rate.
4. Integrate pump head and hopper; prevent eduction and deposition together with the paddle agitating.
5. Small area occupied, Compact structure, convenient for maintaining.
6. High working pressure and working reliability.
7. Convenient maintenance and easily operated.
Parameter:
| Model | SG60-50 |
| Output | 60L/min |
| Work pressure | 5MPa(50bar) |
| Cylinder Dia. | Φ90mm |
| Cylinder | 2 |
| Piston stroke | 145mm |
| Piston speed | 82/min |
| Outlet diameter | 50mm |
| Max. particle size | 5mm |
| Suitable rate of cement sand | ≥13 |
| Hopper Capacity | 160L |
| Power | E-motor 7.5kw |
| Transmission | Fluid drive |
| Overall Dimensions | 1950*1150*1150mm |
Applications
To pump / grout the wet ready-mixed cement slurry, mortar or similar materials in mine gallery, rail and road tunnel, hydropower construction, slope consolidation, underground engineering , subway and civil engineering etc.

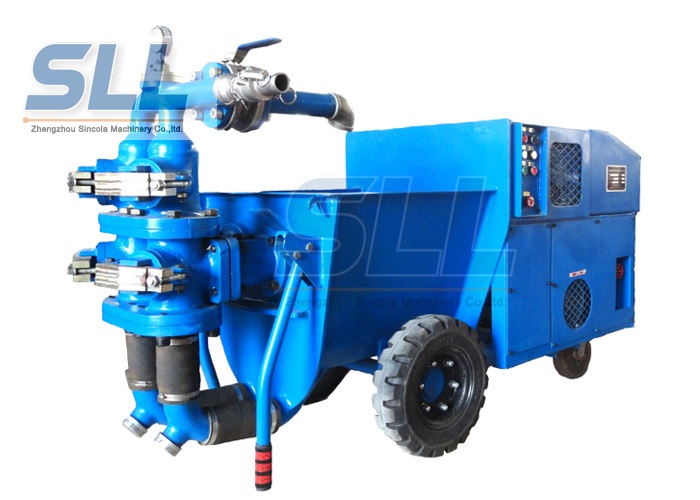

SG60/50 is a hydraulic double-piston mortar pump with double cylinder and single acting. It has the advantages of compact structure, reliable operation, low fault rate, convenient cleaning and maintenance, etc. This machine can be used not only for pumping the cement slurry or mortar, combined with accessories such as compressor and spraying gun, it is also ideal equipment applied in spraying.
Advantage
1. Hydraulic double piston structure to achieve continuous pumping;
2. IP55 100% new electrical motor;
3. Electrical control box manufactured by thicker plate and standard Schneider electrical elements and appliance;
4. Standard seal parts to ensure the excellent seal quality, no leakage;
5. Painted after sandblasting for a pretty appearance.
Remarks:
Packing: Wooden case with international standard or according to your requirement;
SG60-50 Packing Size of machine: L×W×H=1600× 850× 1120 mm
Weight of machine:820kg (After packed in wooden case)
